VAWT Made From Wood Siding

6 Mar , 2013   Video


This video and blog post is about a Vertical Axis Wind Turbine (VAWT) made from mostly a wood called  Western Red Cedar. It has contains images from the first attempt 2 years ago and video update of of the second attempt with modified blades/airfoils. It’s a fun project to work on, especially when it’s in your living room/workshop and the parts can be obtained as cheaply as possible. Sometimes you can come up with clever ideas to achieve the impossible!The parts where various materials for around the shop:- Blades (and struts) from 1 x 8 Bevel cedar siding lumber

– Hub- the top and bottom wood circle from a cable spool

– 1 inch outside diameter aluminium shaft

– Hub- 1 inch Floor flange

– Hub- 1 inch x 1-1/2 inch Reducing Bushing

– Two rare earth ring magnets (ebay), thin vinyl sheet for the blade scoops and assorted screws.

One of the blade scoops was on the VAWT was damaged slightly when it “moved” by a family member.

Future plans: Brace the struts, upgrade the shaft, create a better mount and somehow add a generator. Hopefully with the second tower in the making, I get the chance to test it out.

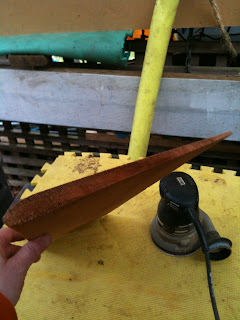

Shaping the blades
Adding struts to the hub

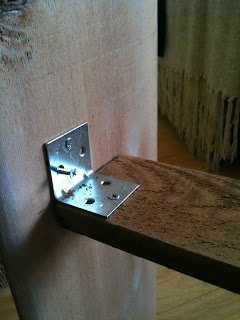

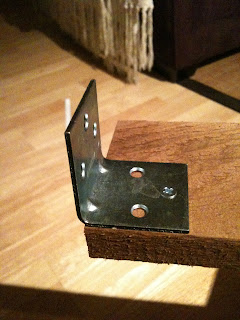

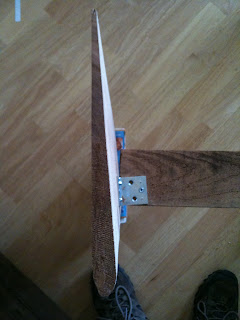

Right angle bracket for the blade

Close up of cedar strut. Cut from the thicker section of a 1 x 8 cedar siding plank

Shows how it was joined
High tech level system for blades. Sits on a spine of a VHS  tape case.
Birds eye view of the blades shape and mounted

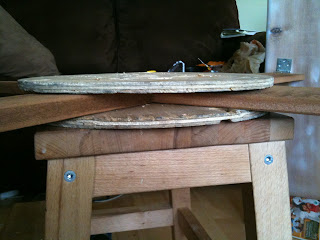

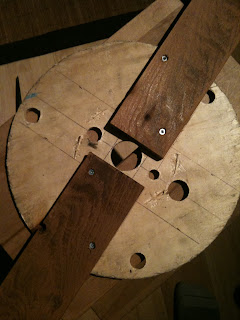

Sandwiched the struts between the plywood cable spool

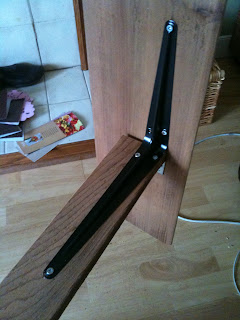

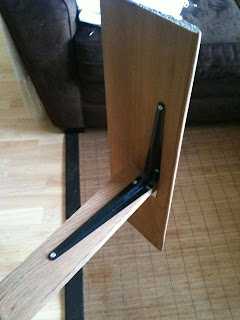

Shelf bracket for more support
Top of dismantled cable spool
Another shot of the shelf bracket. Wanted to allow space for blade angle, etc.

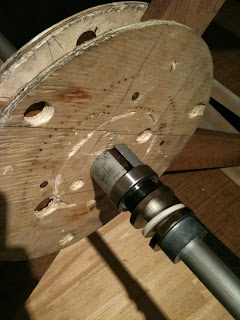

Shaft, locking collar and magnets inserted on the shaft. Ah, yes, I did add an extra bearing just underneath the reducing bear. Maybe a bit of my over engineering!

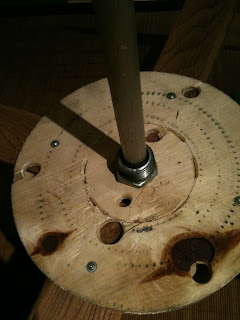

The reducing bushing fits nicely into the floor flange. Tighten and you have the plywood, struts all wedged together. Plus the shaft and slide inside.

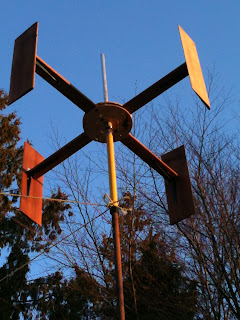

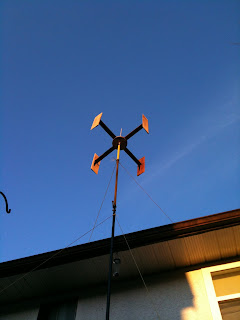

Erected on tilt up wind turbine tower.

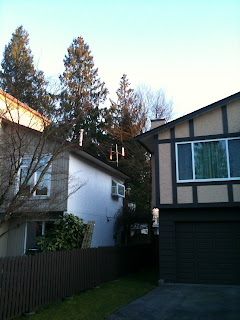

Not too high, but I wish it was! My noisy neighbour would report me for some height violation bylaw.

At least it looks scary…

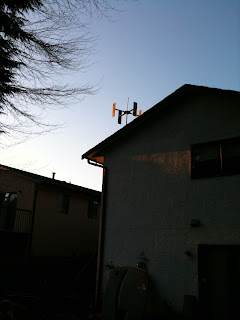

Can’t really see it from the road. The trees really kill the wind.

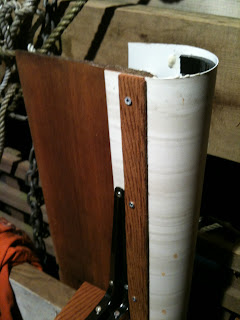

Adding the airfoils to create a Lenz style of airfoil

, , ,
